LIGHTING & SHADING CONTROL SYSTEMS

SELECTED PRODUCTS BY CATEGORY:

Main modules

LPC-2.MC8 | PLC main control module

  • 4 kb Flash memory available for parameter storage
  • Ethernet connectivity with Modbus TCP slave (server) functionality
  • USB port for Debugging, Application and Default parameters transfer
  • Two CAN ports – one for master, one for slave
  • Smarteh bus for Smarteh intelligent peripheral modules (thermostat, RFID, IR, operator terminal,..)
  • Integrated RTC with Super Cap backup
  • 32 kB non-volatile memory
  • Mains power supplied
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.MC9 | PLC main control module

  • Real Time Linux OS ARM based main module
  • Ethernet connectivity with Modbus TCP/IP Slave (server) and/or Master (client) functionality
  • USB port for Debugging and application transfer
  • Two CAN ports – one for master, one for slave
  • Smarteh bus for Smarteh intelligent peripheral modules (thermostat, RFID, IR, operator terminal,..)
  • RTC and 512 kB non-volatile memory with super capacitor for needed energy storage
  • BACnet IP (B-ASC), web server and SSL
  • Mains power supplied
  • Modbus RTU Master or Slave
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

Communication modules

LPC-2.EO1 | EnOcean wireless module

  • EnOcean transceiver module based on EnOcean TCM320 module with integrated whip antenna
  • Up to 5 receiver and 5 transmitter EnOcean devices supported
  • 868 MHz or 315 MHz EnOcean radio standard1
  • Typical working range inside buildings is up to 30m
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DL1 | DALI/DSI module

  • Standard DALI/DSI master and power supply
  • Connection up to 64 slave devices
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DL2 | DALI-2 module

  • Standard DALI-2, DALI or DSI master and power supply
  • Master, multi-master or slave mode
  • Connection up to 64 slave devices
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

Digital input modules

LPC-2.DI2 | 1DI Digital input module 230 V AC

  • 1 direct 230 V AC digital input, galvanic isolated
  • Flexible input for wide use of operation
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DI5 | 8DI digital input module volt-free

  • 8 standard digital inputs, galvanic isolated
  • Flexible input for wide use of operation
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.I16 | 16DI digital input module volt-free or 24 V DC

  • 16 voltage free or standard digital inputs, galvanic isolated
  • Flexible inputs for wide use of operation
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DI3 | 1DI digital input module 24 V DC

  • 1 standard digital input, galvanic isolated
  • Flexible input for wide use of operation
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DI6 | 8DI digital input module 24 V DC

  • 8 external 24 V DC digital inputs, galvanic isolated
  • Flexible input for wide use of operation
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DI4 | 1DI digital input module 24 V AC

  • 1 standard digital input, galvanic isolated
  • Flexible input for wide use of operation
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DI7 | 8DI digital inputs module 24 V AC

  • 8 external 24 V AC digital inputs, galvanic isolated
  • Flexible input for wide use of operation
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DI2 | 1DI Digital input module 230 V AC

  • 1 direct 230 V AC digital input, galvanic isolated
  • Flexible input for wide use of operation
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DI8 | 8DI digital input module 230 V AC

  • 8 direct 230 V AC digital inputs, galvanic isolated
  • Flexible input for wide use of operation
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

Digital output modules

LPC-2.DO2 | 1DO (NO) relay output module

  • 1 relay digital output with make contacts (NO), galvanic isolated
  • Flexible output for wide use of operation
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DO3 | 1DO (NC) relay output module

  • 1 relay digital output with brake contacts (NC), galvanic isolated
  • Flexible output for wide use of operation
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DO6 | 8DO (NO) relay output module

  • 8 relay digital outputs with make contacts (NO), galvanic isolated
  • Flexible output for wide use of operation
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DO8 | 8DO (NC) relay output module

  • 8 relay digital outputs with break contacts (NC), galvanic isolated
  • Flexible output for wide use of operation
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DO1 | 1DO 24 V DC transistor output module

  • 1 standard transistor digital output, current limited, galvanic isolated
  • Flexible output for wide use of operation
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.O16 | 16DO 24 V DC transistor output module

  • 16 standard transistor digital outputs, current limited, galvanic isolated
  • Flexible output for wide use of operation
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DO4 | 1DO 24 .. 230 V AC triac output module

  • 1 snubberless zero crossing triac output, galvanic isolated
  • Long life AC digital output
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DO9 | 4DO 24 .. 230 V AC triac output module

  • 4 snubberless zero crossing triac outputs, galvanic isolated
  • Long life AC digital output
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DO7 | 8DO 24 .. 230 V AC triac output module

  • 8 snubberless zero crossing triac outputs, galvanic isolated
  • Long life AC digital output
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

Analog modules

LPC-2.A01 | 6AI 2AO analog input output module

  • 2 analog outputs voltage / current
  • 6 analog inputs voltage / current
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.A03 | 2AO analog output module

  • 2 analog outputs voltage / current
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.A04 | 8AO analog output module

  • 8 analog outputs voltage / current
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

Dedicated modules

LPC-2.DD4 | 4 channel MOSFET dimmer module

  • 4 channel MOSFET dimmer drive for dimmable lights or AC motor fans.
  • Operational power supply 90 .. 264 V AC, 50/60 Hz or 11.5 .. 30 V DC.
  • Overload protected
  • SW adjustable trailing-edge or leading-edge dimmer type, separately for each one of 4 channels.
  • SW adjustable fade-in and fade-out time effect, separately for each one of 4 channels.
  • Phase dependent driver for output which makes this module a lot more resistant to electrical disturbances than commonly used amplitude dependent drivers.
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.PW1 | 4 Channel PWM Signal Output module

  • 4 channel PWM signal output
  • Galvanic isolated outputs
  • 100 mA per output with overload protection
  • Push-pull transistor outputs capable of driving the signal over up to 100 nF capacitance on the lines.
  • Adjustable transition time (fade effect) between various output settings
  • Status LEDs
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.R01 | 7DO 6DI room module

  • 7 triac outputs
  • Electrical door lock output
  • 6 voltage free digital inputs
  • Galvanic isolated
  • Flexible inputs for wide use of operation
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.R02 | 4DO 3DI 4AO 2AI room module

  • 4 analog outputs, where Q2 and Q4 may also be used for GND connection (jumper selectable)
  • 2 analog inputs, where I2 input may also be used for NTC or GND connection (jumper selectable)
  • Analog input voltage range: 0 .. 10 V @ ±1 % measurement error of full scale
  • Analog output voltage output range: 0 .. 10 V @ ±1 % accuracy of full scale value
  • Tacho input
  • 3 voltage free digital inputs, galvanic isolated
  • Flexible digital input for wide use of operation
  • 3 snubberless zero crossing triacs output also suitable for use with inductive loads up to 0.9 A
  • 1 snubberless zero crossing triac output also suitable for use with inductive loads up to 3.5 A, with load test function
  • 24 V AC/DC power supply output with overload protection
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

Intelligent peripheral modules

LPC-2.DT3 | LCD Room thermostat (T, 3-speed fan), access control reader & key card holder RFID Mifare, 8 gang touch switch

  • Frameless glass screen with LCD
  • 8 capacitive touch buttons
  • 8 blue LED, one on each touch button
  • 8 rectangular symbols to show on/off status on the LCD
  • Integrated ISO/IEC 14443 A/MIFARE RFID UID reader
  • Possibility to use as card access or card holder – supplied with two different plastic covers for RFID slot
  • RFID DODAN V ZGORNJO VRSTICO
  • Integrated temperature and light sensor
  • LCD intensity control
  • Color LCD with possibility of background picture changing and status symbols size changing
  • Buzzer for touch beep signalization or other signalization which is controlled from PLC program
  • Available in black or white colour finish
  • Flush mount or screw mount

USER MANUAL

LPC-2.IR2V | IR multisensor (T/RH, IR, lux)

  • Room temperature and relative humidity measurement
  • Lux sensor for light intensity measurement
  • IR receive/transmit
  • Programmable IR transceiver
  • RC-5 IR protocol receiver
  • Daikin, Toshiba, Hitachi, Panasonic, Mitsubishi, LG IR protocol transmitter
  • Flush mount

USER MANUAL

LPC-2.RC1S | IR remote control

  • IR command transmitter
  • Robust design
  • Designed for building automation

USER MANUAL

LPC-2.DT1B | LCD 4 gang push button switch

  • 4 push buttons to switch light on/off
  • 4 light symbols to show lights on/off status
  • Temperature measurement
  • LCD intensity control
  • Color LCD display with background picture customization possibility
  • Available in black or white colour finish
  • Flush mount

USER MANUAL

LPC-2.DT2 | LCD 8 gang touch switch

  • 8 capacitive touch buttons
  • 8 blue LED, one on each touch button
  • 8 rectangular symbols to show on/off status on the LCD
  • LCD intensity control
  • Color LCD with possibility of background picture changing and status symbols size changing
  • Buzzer for touch beep signalization or other signalization which is controlled from PLC program
  • Available in black or white colour finish
  • Flush mount or screw mount

USER MANUAL

LPC-2.SM5 | Multisensor (IR, lux, PIR, CO2)

  • CO2 sensor for CO2 measurement
  • PIR sensor for occupancy detection
  • Lux sensor for light intensity measurement
  • IR receive/transmit
  • Mounting with integrated magnets or screws

USER MANUAL

LPC-2.SM6 | Multisensor (IR, lux, PIR, VOC)

  • VOC sensor for VOC measurement
  • PIR sensor for occupancy detection
  • Lux sensor for light intensity measurement
  • IR receive/transmit
  • Mounting with integrated magnets or screws

USER MANUAL

LPC-2.SM7 | Multisensor (IR, lux, T)

  • IR matrix sensor for temperature measurement
  • Lux sensor for light intensity measurement
  • IR receive/transmit
  • Mounting with integrated magnets or screws

USER MANUAL

7” LCD PLC based touch screens

LPC-3.GOT.001 | 7`` LCD PLC HMI touch screen, resistive

  • Aluminium frame with 7” LCD display and resistive touch screen
    – landscape or portrait orientation
  • Graphical interface is freely designed by the user with GUI editor in SmartehIDE
  • Ethernet connectivity with Modbus TCP/IP Slave (server) and/or Master (client) functionality,
    BACnet IP (B-ASC), web server and SSL
  • Modbus RTU Master or Slave
  • USB port for Debugging and application transfer
  • Remote access and application transfer
  • 2 galvanic isolated (2500 V DC) CAN port – one for master, one for slave
  • RTC and 512 kB NV RAM with super capacitor for needed energy storage
  • Micro SD Card slot
  • Display brightness level controlled from PLC program
  • Flush mount

USER MANUAL

LPC-3.GOT.011 | 7`` LCD PLC HMI touch screen, capacitive

  • Frameless glass screen with 7” LCD display and capacitive touch screen
    – landscape or portrait orientation
  • Graphical interface is freely designed by the user with GUI editor in SmartehIDE
  • Ethernet connectivity with Modbus TCP/IP Slave (server) and/or Master (client) functionality,
    BACnet IP (B-ASC), web server and SSL
  • Modbus RTU Master or Slave
  • USB port for Debugging and application transfer
  • Remote access and application transfer
  • 2 galvanic isolated (2500 V DC) CAN port – one for master, one for slave
  • RTC and 512 kB NV RAM with super capacitor for needed energy storage
  • Micro SD Card slot
  • Display brightness level controlled from PLC program
  • Available in black or white colour finish
  • Flush mount

USER MANUAL

4.3” LCD PLC based touch screens

LPC-3.GOT.111 | 4.3`` LCD PLC HMI touch screen, capacitive, temperature

  • Frameless glass screen with 4.3” LCD display and capacitive touch screen
    – landscape or portrait orientation
  • Graphical interface is freely designed by the user with GUI editor in SmartehIDE
  • Integrated temperature and light sensor
  • Ethernet connectivity with Modbus TCP/IP Slave (server) and/or Master (client) functionality,
    BACnet IP (B-ASC), web server and SSL
  • Modbus RTU Master or Slave
  • USB port for Debugging and application transfer
  • Remote access and application transfer
  • Two CAN ports – one for master, one for slave
  • RTC and 512 kB NV RAM with super capacitor for needed energy storage
  • Display brightness level controlled from PLC program
  • Available in black or white colour finish
  • Flush mount or screw mount

USER MANUAL

LPC-3.GOT.131 | 4.3`` LCD PLC HMI touch screen, capacitive, temperature, RFID Mifare

  • Frameless glass screen with 4.3” LCD display with capacitive touch screen
    – landscape or portrait orientation
  • Graphical interface is freely designed by the user with GUI editor in SmartehIDE
  • Integrated ISO/IEC 14443 A/MIFARE RFID UID reader
  • Mifare Classic 1K, 2K, 4K NDEF reader and writer
  • Integrated temperature and light sensor
  • Possibility to use as card access or card holder – supplied with two different plastic covers for RFID slot
  • Ethernet connectivity with Modbus TCP/IP Slave (server) and/or Master (client) functionality,
    BACnet IP (B-ASC), web server and SSL
  • Modbus RTU Master or Slave
  • USB port for Debugging and application transfer
  • Remote access and application transfer
  • Two CAN ports – one for master, one for slave
  • RTC and 512 kB NV RAM with super capacitor for needed energy storage
  • Display brightness level controlled from PLC program
  • Available in black or white colour finish
  • Flush mount or screw mount

USER MANUAL

7” LCD PC based touch screens

LTS-2.PC3 | 7`` LCD PC HMI touch screen, capacitive, CE6.0

  • Aluminium frame with 7” LCD display and resistive touch screen
    – landscape orientation
  • Operating system Windows CE 6.0
  • Processor Samsung S5PV210 @ 1 GHz
  • Memory 512M RAM on board
  • Storage micro SD card slot 4 GB SD card included
  • Display 800 x 480 pixels, 64 k Color, LCD display size 154 x 92 mm
  • Keyboard on screen (USB keyboard and USB mouse supported)
  • Connection to process 1 x Ethernet, 1 x RS-232, 2 x RS-485
  • Power supply 5.2 V DC, 1.2A external power supply
  • Programming Movicon CE preinstalled
  • OS downloading USB, RS-232, SD CARD
  • Application download to SD card using card reader, USB
  • Flush mount

USER MANUAL

Connection of intelligent peripheral panels

Interconnection cable SSK

USER MANUAL

Interconnection cable ICM-7

USER MANUAL

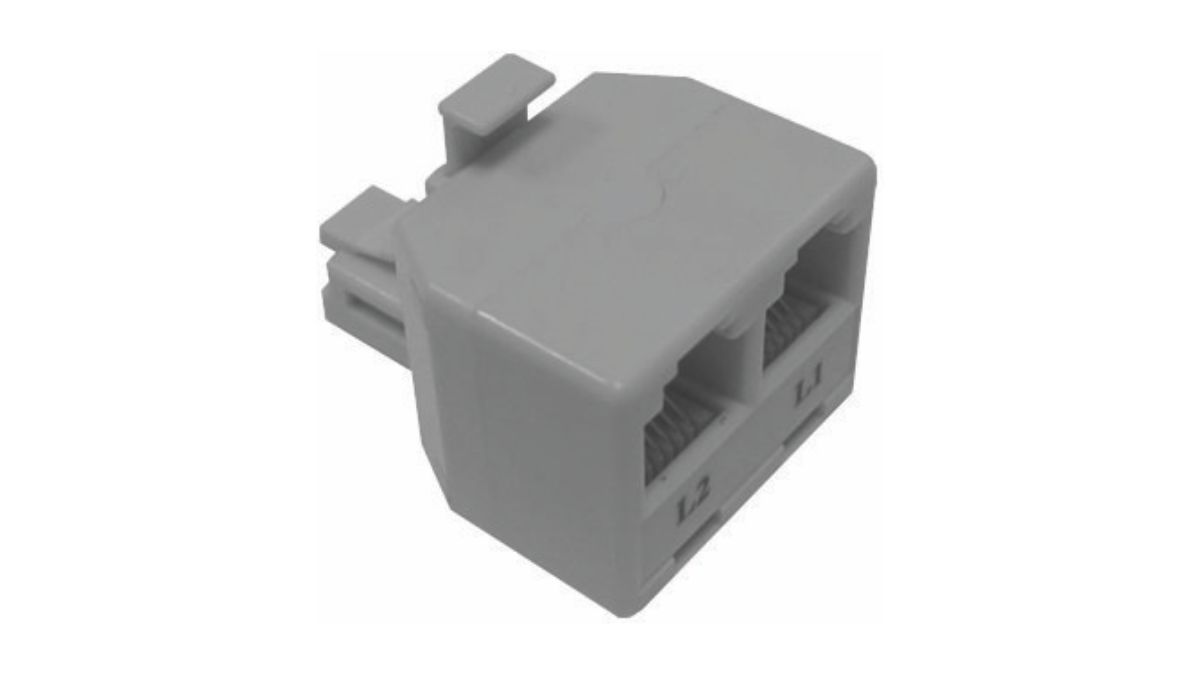

Splitter SPL-1 (1/2)

USER MANUAL

Splitter SPL-2 (1/8)

USER MANUAL

Splitter SPL-5

USER MANUAL

Condensation water leakage occupancy detectors

LOC-1 | Occupancy sensor

  • Wide power supply range 5 .. 32 V DC/AC
  • Output voltage free contact
  • Mounting with integrated magnets or screws
  • Convenient enclosure for multi mounting possibilities
  • 2 diagnose LED

USER MANUAL

LOC-2 | Occupancy sensor

  • Wide voltage operating range 10 .. 32 V DC
  • Two flying lead wires connection
  • Mounting with integrated magnets or screws
  • Convenient enclosure for multi mounting possibilities
  • 1 diagnose LED

USER MANUAL

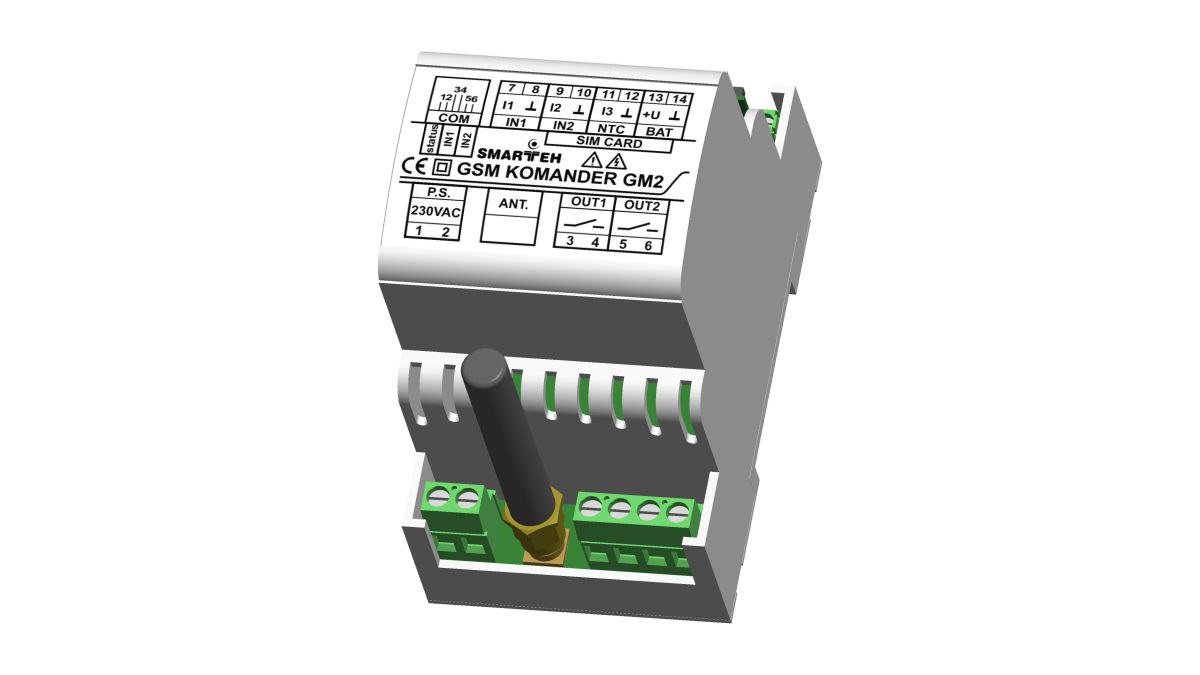

GSM commander GM2

GM2 | GSM commander

USER MANUAL

Power supply modules

APS-1 | Adjustable power supply 5V2

USER MANUAL

APS-04 | Adjustable power supply 24V 60W

USER MANUAL

USB to serial RS-232 / RS-485 adapter

LSA-2.USB | USB RS-232/RS-485 adapter

  • Optically isolated RS-232 and RS-485 ports
  • Speeds up 115 kbps
  • Galvanic isolated power supply
  • Diagnose LEDs
  • Small compact enclosure

USER MANUAL
