Main modules

LPC-2.MC8 | PLC main control module

  • 4 kb Flash memory available for parameter storage
  • Ethernet connectivity with Modbus TCP slave (server) functionality
  • USB port for Debugging, Application and Default parameters transfer
  • Two CAN ports – one for master, one for slave
  • Smarteh bus for Smarteh intelligent peripheral modules (thermostat, RFID, IR, operator terminal,..)
  • Integrated RTC with Super Cap backup
  • 32 kB non-volatile memory
  • Mains power supplied
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.MC9 | PLC main control module

  • Real Time Linux OS ARM based main module
  • Ethernet connectivity with Modbus TCP/IP Slave (server) and/or Master (client) functionality
  • USB port for Debugging and application transfer
  • Two CAN ports – one for master, one for slave
  • Smarteh bus for Smarteh intelligent peripheral modules (thermostat, RFID, IR, operator terminal,..)
  • RTC and 512 kB non-volatile memory with super capacitor for needed energy storage
  • BACnet IP (B-ASC), web server and SSL
  • Mains power supplied
  • Modbus RTU Master or Slave
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

Communication modules

LPC-2.EO1 | EnOcean wireless module

  • EnOcean transceiver module based on EnOcean TCM320 module with integrated whip antenna
  • Up to 5 receiver and 5 transmitter EnOcean devices supported
  • 868 MHz or 315 MHz EnOcean radio standard1
  • Typical working range inside buildings is up to 30m
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DL1 | DALI/DSI module

  • Standard DALI/DSI master and power supply
  • Connection up to 64 slave devices
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DL2 | DALI-2 module

  • Standard DALI-2, DALI or DSI master and power supply
  • Master, multi-master or slave mode
  • Connection up to 64 slave devices
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

Dedicated modules

LPC-2.DOL | Door lock output module

  • Door lock open module for 12 V DC low current locks
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.DD4

  • 4 channel MOSFET dimmer drive for dimmable lights or AC motor fans.
  • Operational power supply 90 .. 264 V AC, 50/60 Hz or 11.5 .. 30 V DC.
  • Max. power consumption at 230 V AC is 210 VA on L1/Q1 and 150 VA on L2/Q2, L3/Q3, L4/Q4.
  • Overload protected
  • SW adjustable trailing-edge or leading-edge dimmer type, separately for each one of 4 channels.
  • SW adjustable fade-in and fade-out time effect, separately for each one of 4 channels.
  • Phase dependent driver for output which makes this module a lot more resistant to electrical disturbances than commonly used amplitude dependent drivers.
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

LPC-2.R01

  • 7 triac outputs
  • Electrical door lock output
  • 6 voltage free digital inputs
  • Galvanic isolated
  • Flexible inputs for wide use of operation
  • Standard DIN EN50022-35 rail mounting

USER MANUAL

Intelligent peripheral modules

LPC-2.DT3 | LCD Room thermostat (T, 3-speed fan), access control reader & key card holder RFID Mifare, 8 gang touch switch

  • Frameless glass screen with LCD
  • 8 capacitive touch buttons
  • 8 blue LED, one on each touch button
  • 8 rectangular symbols to show on/off status on the LCD
  • Integrated ISO/IEC 14443 A/MIFARE RFID UID reader
  • Possibility to use as card access or card holder – supplied with two different plastic covers for RFID slot
  • Integrated temperature and light sensor
  • LCD intensity control
  • Color LCD with possibility of background picture changing and status symbols size changing
  • Buzzer for touch beep signalization or other signalization which is controlled from PLC program
  • Available in black or white colour finish
  • Flush mount or screw mount

USER MANUAL

LPC-2.ID3V | Access control reader RFID Emarine

  • RFID reader
  • Available in black or white colour finish
  • Flush mount

USER MANUAL

LPC-2.ID2V | Key card holder RFID Emarine, OCC/DND/MUR switch

  • RFID reader
  • RFID card slot
  • LEDs for showing activated messages & requests: do not disturb, room service
  • 2 push buttons for activating messages & requests: do not disturb, room service
  • Available in black or white colour finish
  • Flush mount

USER MANUAL

LPC-2.ID1V | Access control reader RFID Emarine, OCC/DND/MUR/SOS status

  • RFID reader
  • LEDs for showing activated messages & requests: occupied, do not disturb, room service, SOS
  • Available in black or white colour finish
  • Flush mount

USER MANUAL

LPC-2.CR1M | Access control reader RFID Mifare

  • RFID reader
  • Available in black or white colour finish
  • Flush mount

USER MANUAL

LPC-2.CA1M | Access control reader RFID Mifare, OCC/DND/MUR/SOS status

  • RFID reader
  • LEDs for showing activated messages & requests: occupied, do not disturb, room service, SOS
  • Available in black or white colour finish
  • Flush mount

USER MANUAL

LPC-2.CH1M | Key card holder RFID Mifare, OCC/DND/MUR switch

  • RFID reader
  • RFID card slot
  • LEDs for showing activated messages & requests: do not disturb, room service
  • 2 push buttons for activating messages & requests: do not disturb, room service
  • Available in black or white colour finish
  • Flush mount

USER MANUAL

LPC-2.CA2M | Waterproof access control reader RFID Mifare, OCC/DND/MUR/SOS status

  • RFID reader
  • LEDs for showing activated messages & requests: occupied, do not disturb, room service, SOS
  • IP65 housing for outdoor mounting
  • Available in black or white colour finish
  • Screw mount

USER MANUAL

LPC-2.CR2M | Waterproof access control reader RFID Mifare

  • RFID reader
  • IP65 housing for outdoor mounting
  • Available in black or white colour finish
  • Screw mount

USER MANUAL

LPC-2.SM5 | Multisensor (IR, lux, PIR, CO2)

  • CO2 sensor for CO2 measurement
  • PIR sensor for occupancy detection
  • Lux sensor for light intensity measurement
  • IR receive/transmit
  • Mounting with integrated magnets or screws

USER MANUAL

LPC-2.SM6 | Multisensor (IR, lux, PIR, VOC)

  •  VOC sensor for VOC measurement
  • PIR sensor for occupancy detection
  • Lux sensor for light intensity measurement
  • IR receive/transmit
  • Mounting with integrated magnets or screws

USER MANUAL

LPC-2.SM7 | Multisensor (IR, lux, T)

  • IR matrix sensor for temperature measurement
  • Lux sensor for light intensity measurement
  • IR receive/transmit
  • Mounting with integrated magnets or screws

USER MANUAL

Modbus RTU RFID access control panels

LMP-1.CA1M | Modbus RTU access control reader RFID Mifare, OCC/DND/MUR/SOS status

  • RFID reader
  • LEDs for showing activated messages & requests: occupied, do not disturb, room service, SOS
  • Available in black or white colour finish
  • Flush mount

USER MANUAL

LMP-1.CH1M | Modbus RTU key card holder RFID Mifare, OCC/DND/MUR switch

  • RFID reader
  • RFID card slot
  • LEDs for showing activated messages & requests: do not disturb, room service
  • 2 push buttons for activating messages & requests: do not disturb, room service
  • Available in black or white colour finish
  • Flush mount

USER MANUAL

4.3” LCD PLC based touch screens

LPC-3.GOT.131 | 4.3`` LCD PLC HMI touch screen, capacitive, temperature sensor, RFID Mifare

  • Frameless glass screen with 4.3” LCD display with capacitive touch screen – landscape or portrait orientation
  • Graphical interface is freely designed by the user with GUI editor in SmartehIDE
  • Integrated ISO/IEC 14443 A/MIFARE RFID UID reader
  • Mifare Classic 1K, 2K, 4K NDEF reader and writer
  • Integrated temperature and light sensor
  • Possibility to use as card access or card holder – supplied with two different plastic covers for RFID slot
  • Ethernet connectivity with Modbus TCP/IP Slave (server) and/or Master (client) functionality, BACnet IP (B-ASC), web server and SSL
  • Modbus RTU Master or Slave
  • USB port for Debugging and application transfer
  • Remote access and application transfer
  • Two CAN ports – one for master, one for slave
  • RTC and 512 kB NV RAM with super capacitor for needed energy storage
  • Display brightness level controlled from PLC program
  • Available in black or white colour finish
  • Flush mount or screw mount

USER MANUAL

7” LCD PC based touch screen

LTS-2.PC3 | 7`` LCD PC HMI touch screen, capacitive, CE6.0

  • Aluminium frame with 7” LCD display and resistive touch screen – landscape orientation
  • Operating system Windows CE 6.0
  • Processor Samsung S5PV210 @ 1 GHz
  • Memory 512M RAM on board
  • Storage micro SD card slot 4 GB SD card included
  • Display 800 x 480 pixels, 64 k Color, LCD display size 154 x 92 mm
  • Keyboard on screen (USB keyboard and USB mouse supported)
  • Connection to process 1 x Ethernet, 1 x RS-232, 2 x RS-485
  • Power supply 5.2 V DC, 1.2A external power supply
  • Programming Movicon CE preinstalled
  • OS downloading USB, RS-232, SD CARD
  • Application download to SD card using card reader, USB
  • Flush mount

USER MANUAL

Connection of intelligent peripheral panels

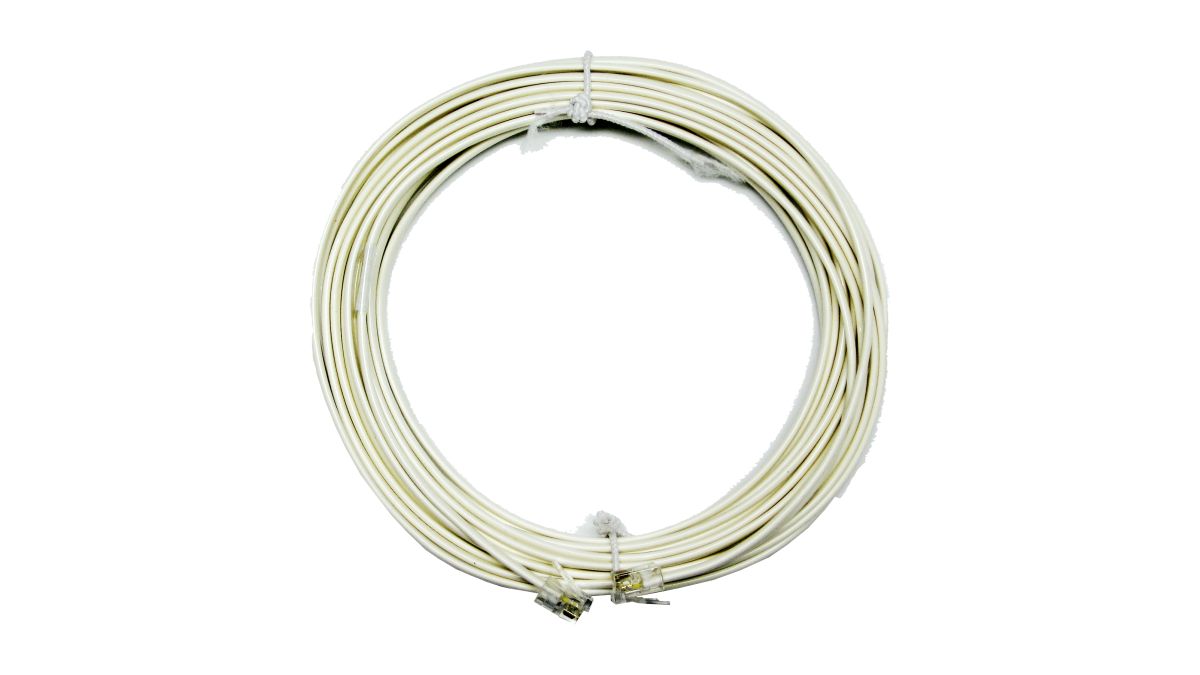

Interconnection cable SSK

USER MANUAL

Interconnection cable ICM-7

USER MANUAL

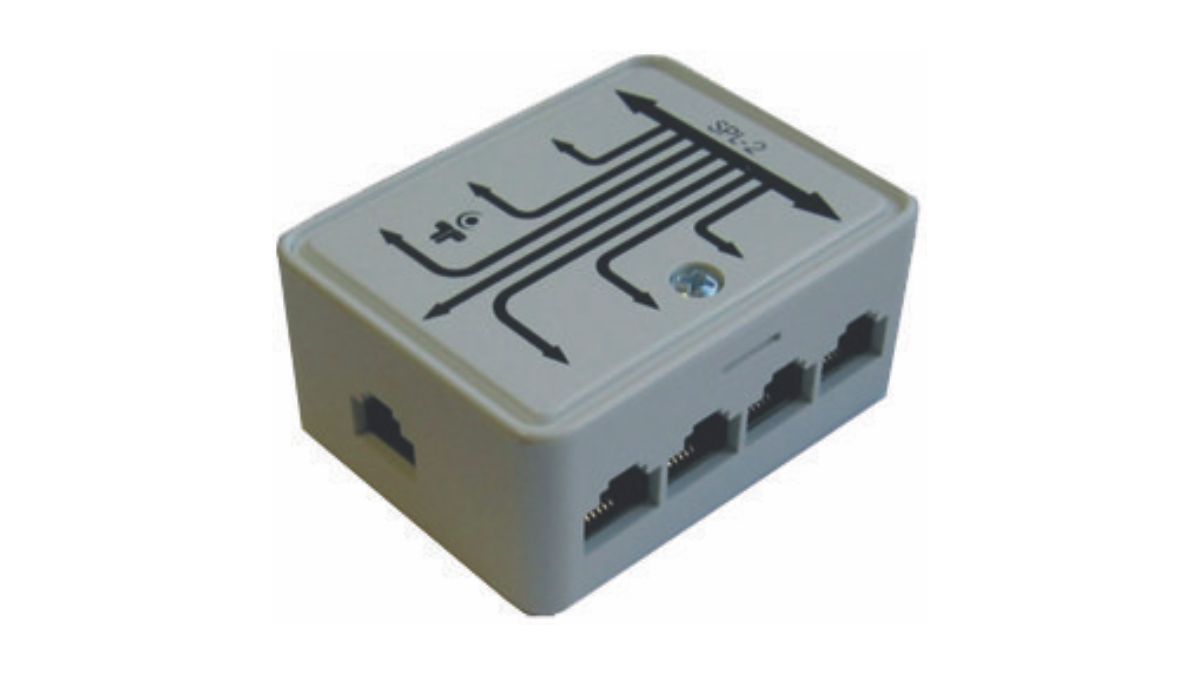

Splitter SPL-2 (1/8)

USER MANUAL

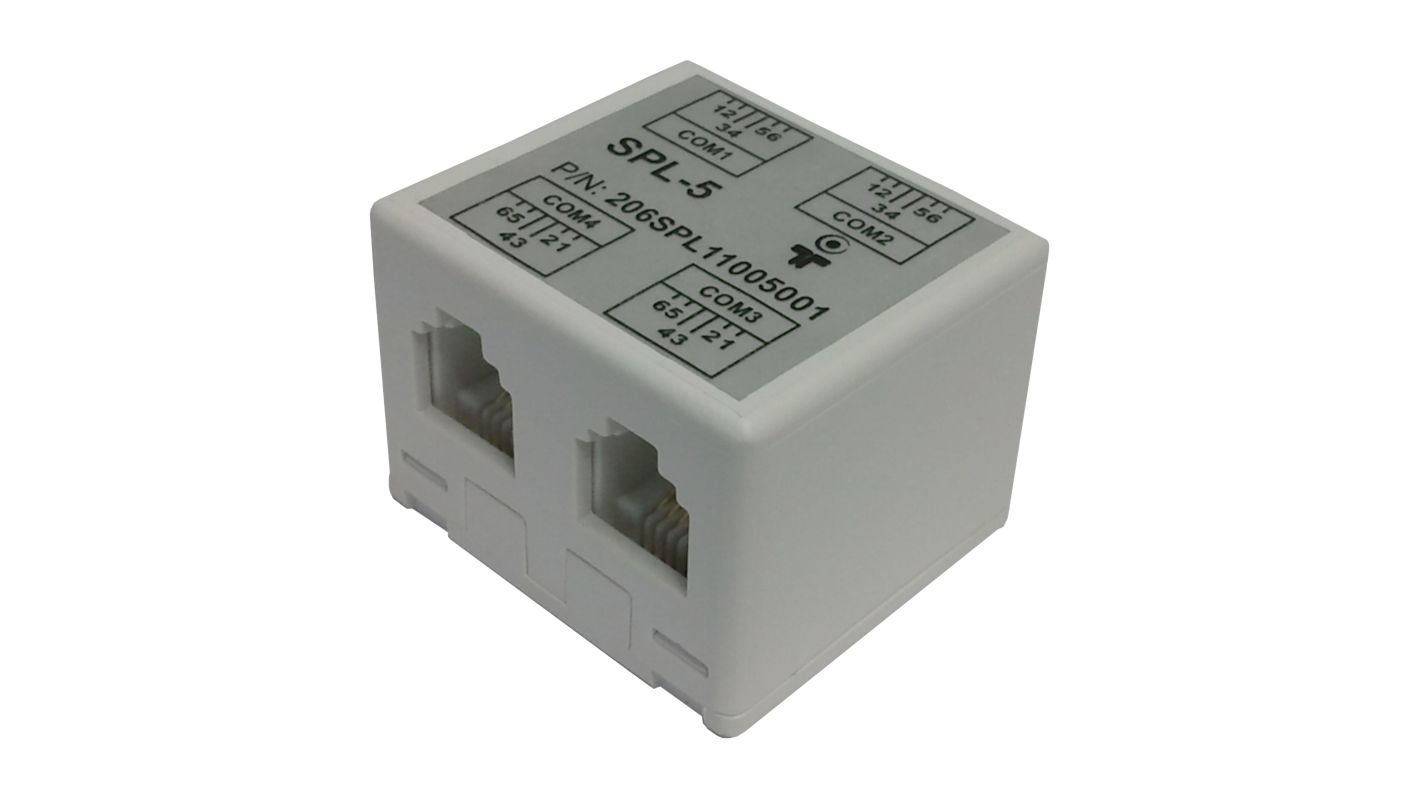

Splitter SPL-5

USER MANUAL

Access control equipment

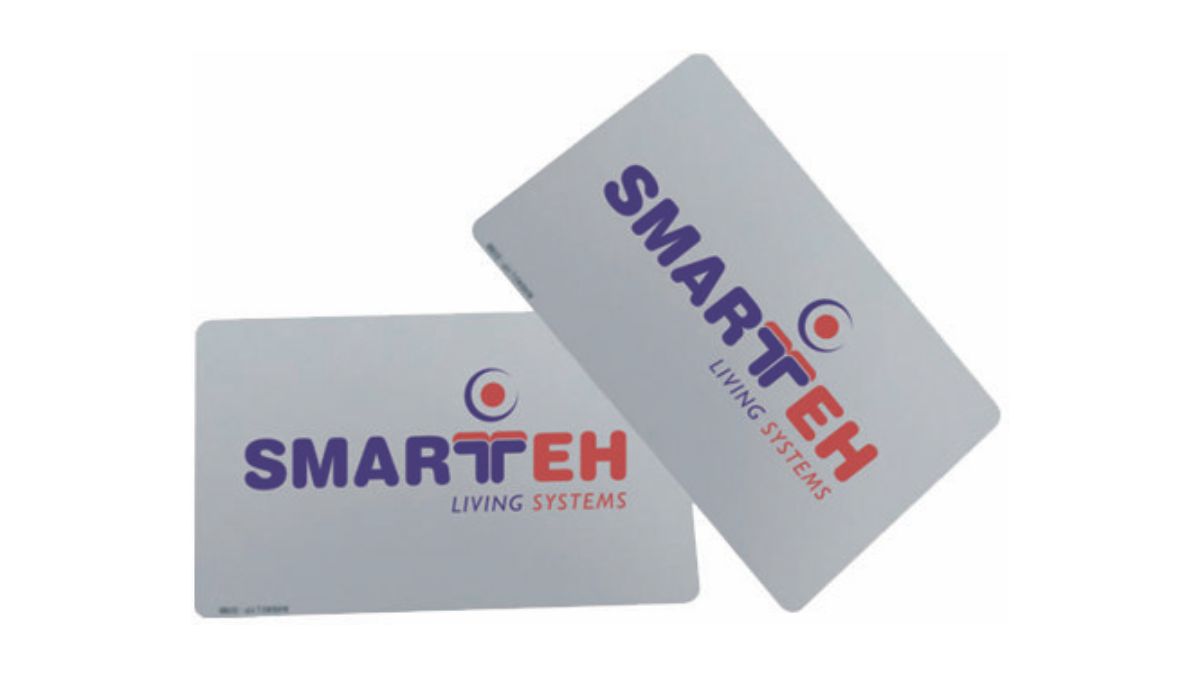

CRD-2 RFID card

USER MANUAL

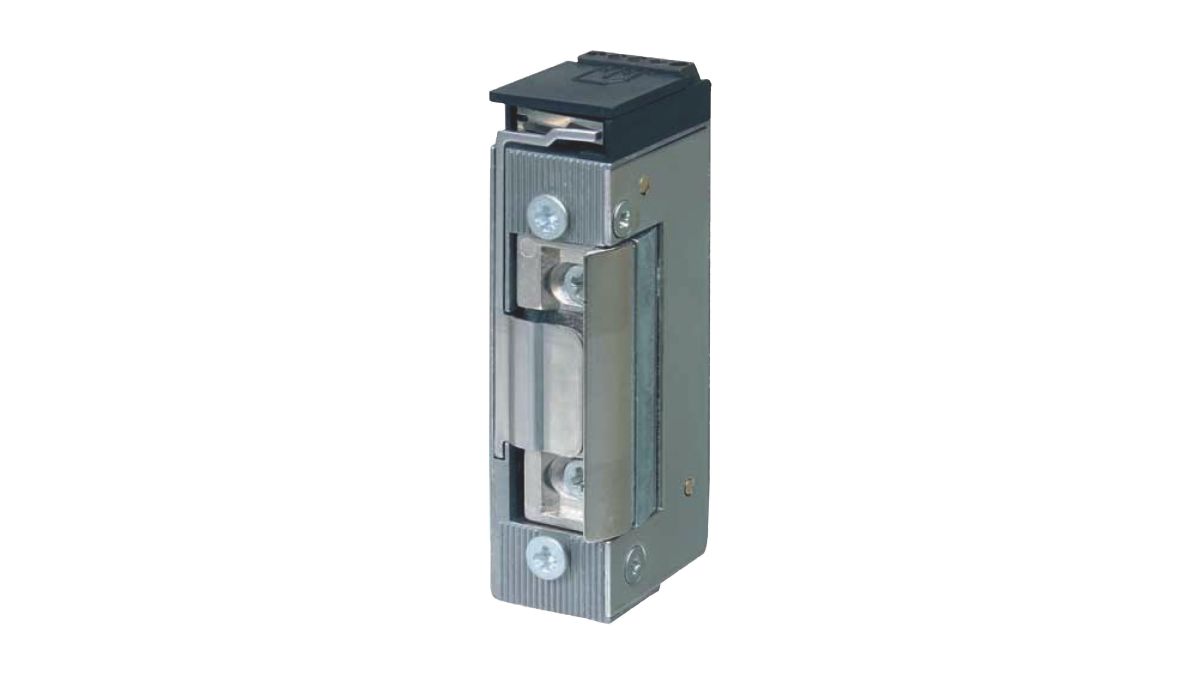

EKS-x Electrical door lock

USER MANUAL

Magnetic sensors

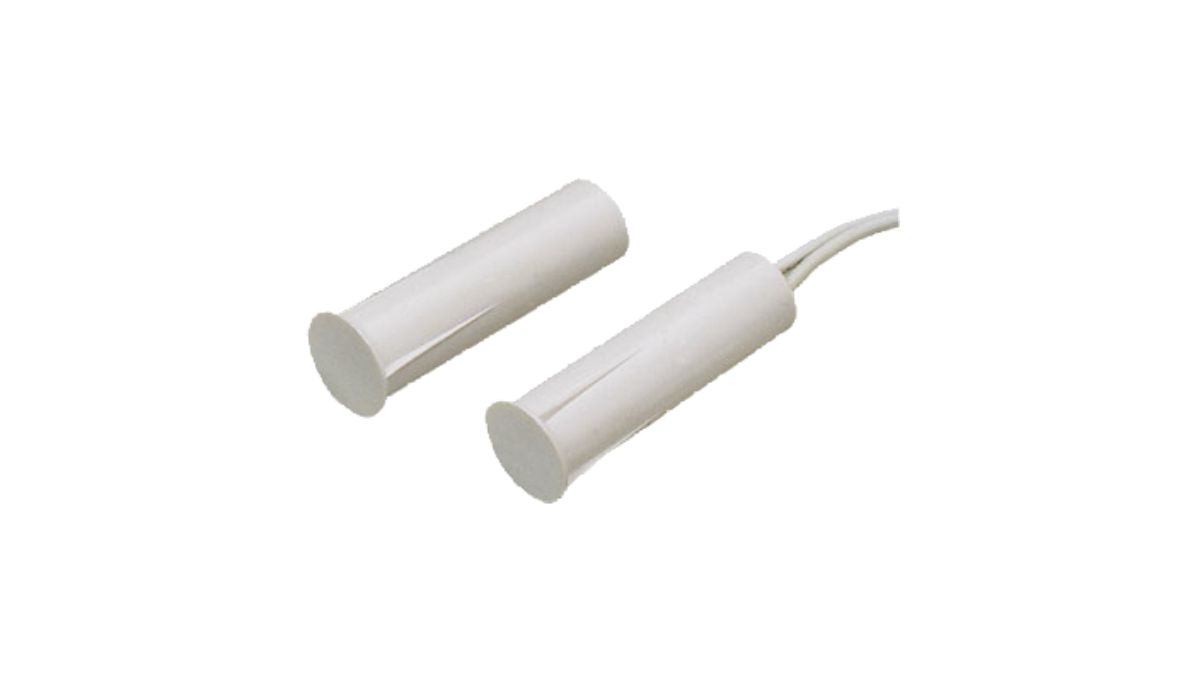

MGK-3 | Magnetic contact

USER MANUAL

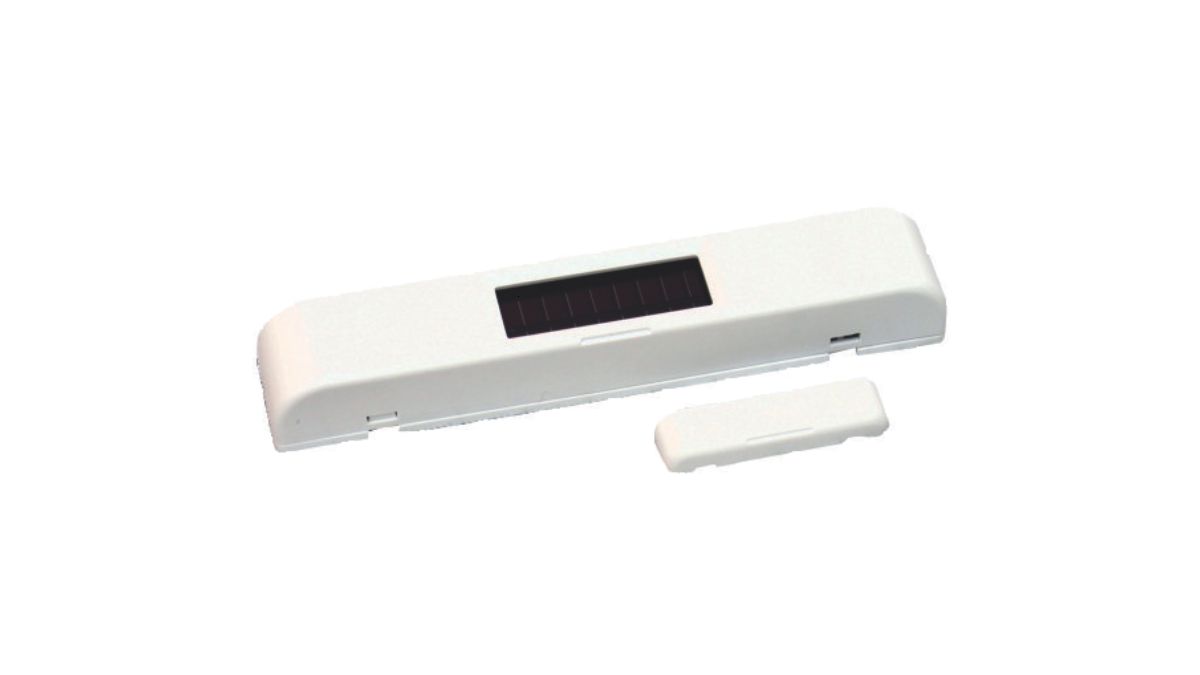

Wireless solar power switch

USER MANUAL

Power supply modules

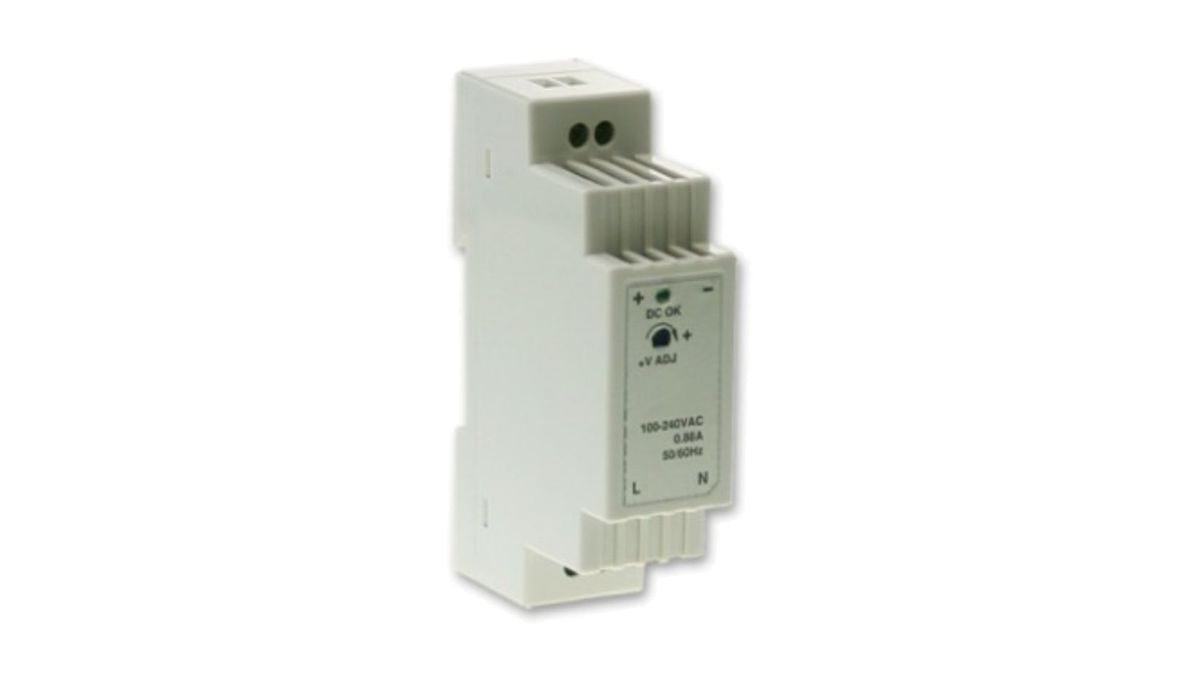

APS-1 | Adjustable power supply 5V2

USER MANUAL

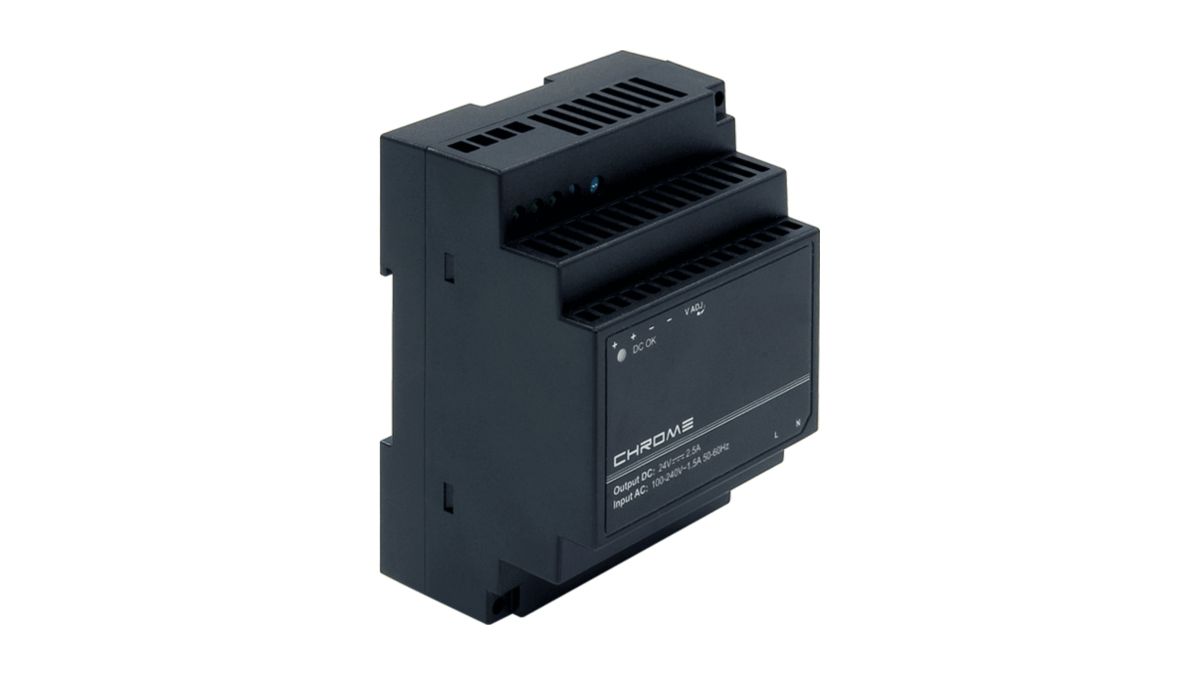

APS-04 | Adjustable power supply 24V 60W

USER MANUAL

USB to serial RS-232 / RS-485 adapter

LSA-2.USB | USB RS-232/RS-485 adapter

  • Optically isolated RS-232 and RS-485 ports
  • Speeds up 115 kbps
  • Galvanic isolated power supply
  • Diagnose LEDs
  • Small compact enclosure

USER MANUAL
