KONTROLA PRISTOPA IN VARNOSTNI SISTEMI

LPC-2.MC8 | PLC main control module

• 4 kb Flash memory available for parameter storage
• Ethernet connectivity with Modbus TCP slave (server) functionality
• USB port for Debugging, Application and Default parameters transfer
• Two CAN ports – one for master, one for slave
• Smarteh bus for Smarteh intelligent peripheral modules (thermostat, RFID, IR, operator terminal,..)
• Integrated RTC with Super Cap backup
• 32 kB non-volatile memory
• Mains power supplied
• Standard DIN EN50022-35 rail mounting

LPC-2.MC9 | PLC main control module

• Real Time Linux OS ARM based main module
• Ethernet connectivity with Modbus TCP/IP Slave (server) and/or Master (client) functionality
• USB port for Debugging and application transfer
• Two CAN ports – one for master, one for slave
• Smarteh bus for Smarteh intelligent peripheral modules (thermostat, RFID, IR, operator terminal,..)
• RTC and 512 kB non-volatile memory with super capacitor for needed energy storage
• BACnet IP (B-ASC), web server and SSL
• Mains power supplied
• Modbus RTU Master or Slave
• Standard DIN EN50022-35 rail mounting

LPC-2.EO1 | EnOcean wireless module

• EnOcean transceiver module based on EnOcean TCM320 module with integrated whip antenna
• Up to 5 receiver and 5 transmitter EnOcean devices supported
• 868 MHz or 315 MHz EnOcean radio standard1
• Typical working range inside buildings is up to 30m
• Standard DIN EN50022-35 rail mounting

LPC-2.DL1 | DALI/DSI module

• Standard DALI/DSI master and power supply
• Connection up to 64 slave devices
• Standard DIN EN50022-35 rail mounting

LPC-2.DL2 | DALI-2 module

• Standard DALI-2, DALI or DSI master and power supply
• Master, multi-master or slave mode
• Connection up to 64 slave devices
• Standard DIN EN50022-35 rail mounting

LPC-2.DOL | Door lock output module

• Door lock open module for 12 V DC low current locks
• Standard DIN EN50022-35 rail mounting

LPC-2.DD4

• 4 channel MOSFET dimmer drive for dimmable lights or AC motor fans.
• Operational power supply 90 .. 264 V AC, 50/60 Hz or 11.5 .. 30 V DC.
• Max. power consumption at 230 V AC is 210 VA on L1/Q1 and 150 VA on L2/Q2, L3/Q3, L4/Q4.
• Overload protected
• SW adjustable trailing-edge or leading-edge dimmer type, separately for each one of 4 channels.
• SW adjustable fade-in and fade-out time effect, separately for each one of 4 channels.
• Phase dependent driver for output which makes this module a lot more resistant to electrical disturbances than commonly used amplitude dependent drivers.
• Standard DIN EN50022-35 rail mounting

LPC-2.R01

• 7 triac outputs
• Electrical door lock output
• 6 voltage free digital inputs
• Galvanic isolated
• Flexible inputs for wide use of operation
• Standard DIN EN50022-35 rail mounting

LPC-2.DT3 | LCD Room thermostat (T, 3-speed fan), access control reader & key card holder RFID Mifare, 8 gang touch switch

• Frameless glass screen with LCD
• 8 capacitive touch buttons
• 8 blue LED, one on each touch button
• 8 rectangular symbols to show on/off status on the LCD
• Integrated ISO/IEC 14443 A/MIFARE RFID UID reader
• Possibility to use as card access or card holder – supplied with two different plastic covers for RFID slot
• Integrated temperature and light sensor
• LCD intensity control
• Color LCD with possibility of background picture changing and status symbols size changing
• Buzzer for touch beep signalization or other signalization which is controlled from PLC program
• Available in black or white colour finish
• Flush mount or screw mount

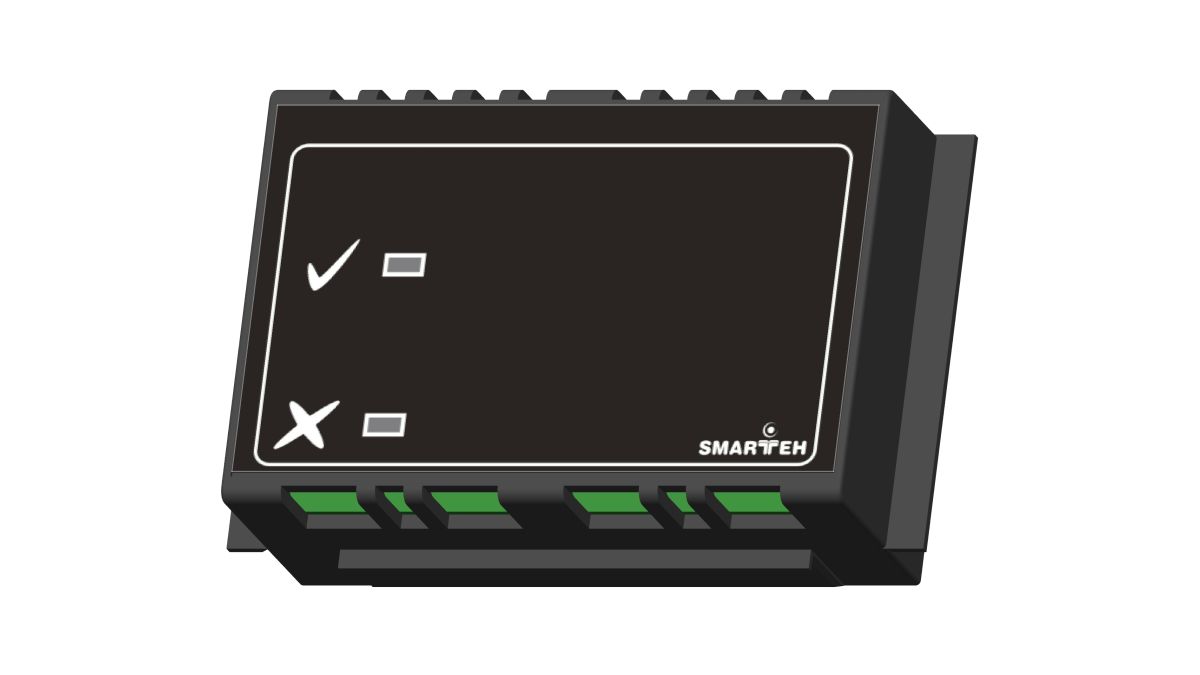

LPC-2.ID3V | Access control reader RFID Emarine

• RFID reader
• Available in black or white colour finish
• Flush mount

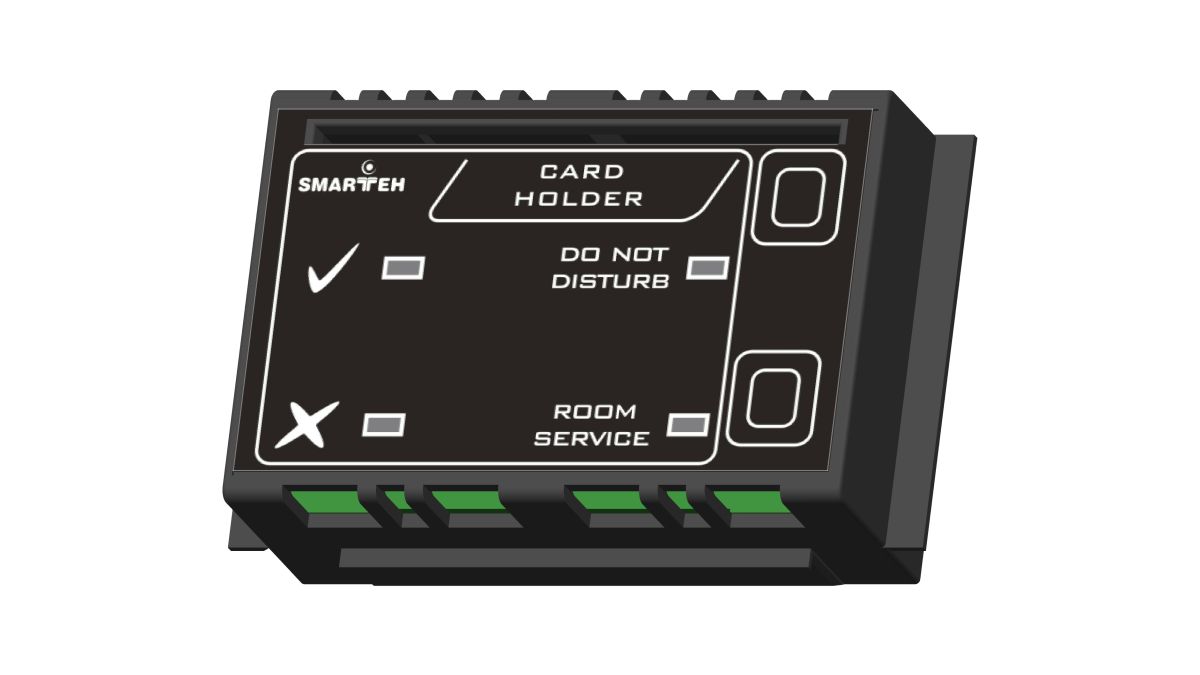

LPC-2.ID2V | Key card holder RFID Emarine, OCC/DND/MUR switch

• RFID reader
• RFID card slot
• LEDs for showing activated messages & requests: do not disturb, room service
• 2 push buttons for activating messages & requests: do not disturb, room service
• Available in black or white colour finish
• Flush mount

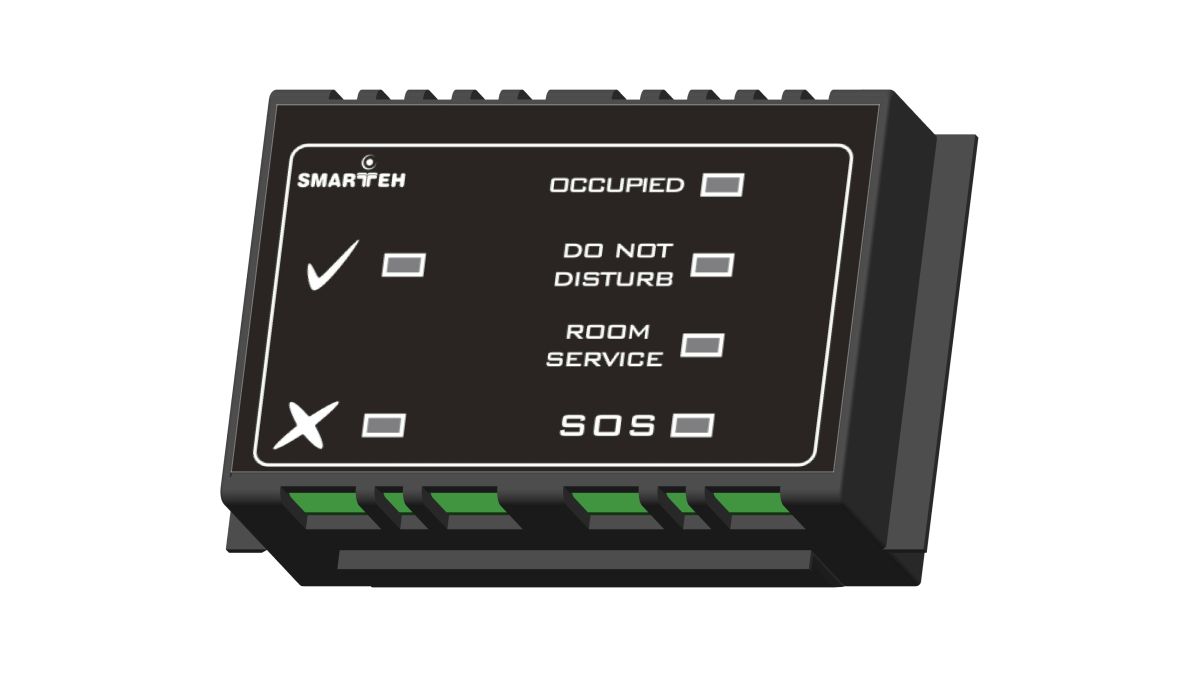

LPC-2.ID1V | Access control reader RFID Emarine, OCC/DND/MUR/SOS status

• RFID reader
• LEDs for showing activated messages & requests: occupied, do not disturb, room service, SOS
• Available in black or white colour finish
• Flush mount

LPC-2.CR1M | Access control reader RFID Mifare

• RFID reader
• Available in black or white colour finish
• Flush mount

LPC-2.CA1M | Access control reader RFID Mifare, OCC/DND/MUR/SOS status

• RFID reader
• LEDs for showing activated messages & requests: occupied, do not disturb, room service, SOS
• Available in black or white colour finish
• Flush mount

LPC-2.CH1M | Key card holder RFID Mifare, OCC/DND/MUR switch

• RFID reader
• RFID card slot
• LEDs for showing activated messages & requests: do not disturb, room service
• 2 push buttons for activating messages & requests: do not disturb, room service
• Available in black or white colour finish
• Flush mount

LPC-2.CA2M | Waterproof access control reader RFID Mifare, OCC/DND/MUR/SOS status

• RFID reader
• LEDs for showing activated messages & requests: occupied, do not disturb, room service, SOS
• IP65 housing for outdoor mounting
• Available in black or white colour finish
• Screw mount

LPC-2.CR2M | Waterproof access control reader RFID Mifare

• RFID reader
• IP65 housing for outdoor mounting
• Available in black or white colour finish
• Screw mount

LPC-2.SM5 | Multisensor (IR, lux, PIR, CO2)

• CO2 sensor for CO2 measurement
• PIR sensor for occupancy detection
• Lux sensor for light intensity measurement
• IR receive/transmit
• Mounting with integrated magnets or screws

LPC-2.SM6 | Multisensor (IR, lux, PIR, VOC)

•  VOC sensor for VOC measurement
• PIR sensor for occupancy detection
• Lux sensor for light intensity measurement
• IR receive/transmit
• Mounting with integrated magnets or screws

LPC-2.SM7 | Multisensor (IR, lux, T)

• IR matrix sensor for temperature measurement
• Lux sensor for light intensity measurement
• IR receive/transmit
• Mounting with integrated magnets or screws

LMP-1.CA1M | Modbus RTU access control reader RFID Mifare, OCC/DND/MUR/SOS status

• RFID reader
• LEDs for showing activated messages & requests: occupied, do not disturb, room service, SOS
• Available in black or white colour finish
• Flush mount

LMP-1.CH1M | Modbus RTU key card holder RFID Mifare, OCC/DND/MUR switch

• RFID reader
• RFID card slot
• LEDs for showing activated messages & requests: do not disturb, room service
• 2 push buttons for activating messages & requests: do not disturb, room service
• Available in black or white colour finish
• Flush mount

LPC-3.GOT.131 | 4.3`` LCD PLC HMI touch screen, capacitive, temperature sensor, RFID Mifare

• Frameless glass screen with 4.3” LCD display with capacitive touch screen – landscape or portrait orientation
• Graphical interface is freely designed by the user with GUI editor in SmartehIDE
• Integrated ISO/IEC 14443 A/MIFARE RFID UID reader
• Mifare Classic 1K, 2K, 4K NDEF reader and writer
• Integrated temperature and light sensor
• Possibility to use as card access or card holder – supplied with two different plastic covers for RFID slot
• Ethernet connectivity with Modbus TCP/IP Slave (server) and/or Master (client) functionality, BACnet IP (B-ASC), web server and SSL
• Modbus RTU Master or Slave
• USB port for Debugging and application transfer
• Remote access and application transfer
• Two CAN ports – one for master, one for slave
• RTC and 512 kB NV RAM with super capacitor for needed energy storage
• Display brightness level controlled from PLC program
• Available in black or white colour finish
• Flush mount or screw mount

LTS-2.PC3 | 7`` LCD PC HMI touch screen, capacitive, CE6.0

• Aluminium frame with 7” LCD display and resistive touch screen – landscape orientation
• Operating system Windows CE 6.0
• Processor Samsung S5PV210 @ 1 GHz
• Memory 512M RAM on board
• Storage micro SD card slot 4 GB SD card included
• Display 800 x 480 pixels, 64 k Color, LCD display size 154 x 92 mm
• Keyboard on screen (USB keyboard and USB mouse supported)
• Connection to process 1 x Ethernet, 1 x RS-232, 2 x RS-485
• Power supply 5.2 V DC, 1.2A external power supply
• Programming Movicon CE preinstalled
• OS downloading USB, RS-232, SD CARD
• Application download to SD card using card reader, USB
• Flush mount

Interconnection cable SSK

Interconnection cable ICM-7

Splitter SPL-2 (1/8)

Splitter SPL-5

CRD-2 RFID card

EKS-x Electrical door lock

MGK-3 | Magnetic contact

Wireless solar power switch

APS-1 | Adjustable power supply 5V2

APS-04 | Adjustable power supply 24V 60W

LSA-2.USB | USB RS-232/RS-485 adapter

• Optically isolated RS-232 and RS-485 ports
• Speeds up 115 kbps
• Galvanic isolated power supply
• Diagnose LEDs
• Small compact enclosure
