LPC-2.MM1 | PLC main control module, Web server, Wifi, Daisy chain Ethernet with Gigabit port
- PLC main module with power supply and extension bus for LPC-2 I/O modules configuration.
- Real Time Linux OS ARM based main module
- 2x Ethernet port (10/100T) with Modbus TCP/IP Slave (server) and/or Master (client) with daisy chain functionality
- 1x Ethernet port (10/100/1000T) with Modbus TCP/IP Slave (server) and/or Master (client) functionality
- USB port for Debugging and application transfer, USB OTG
- BACnet IP (B-ASC), web server and SSL
- Wifi connectivity
- Modbus RTU Master or Slave
- Smarteh bus for Smarteh intelligent peripheral modules (thermostat, RFID, IR, operator terminal,..)
- RTC and 512 kB non-volatile memory with super capacitor for needed energy storage
- RAM: 1 GB DDR3
- Flash: 4GB
- CPU: iMX6 1GHz
- Standard DIN EN50022-35 rail mounting
USER MANUAL
LPC-2.MM2 | PLC main control module, Web server, Wifi, Daisy chain Ethernet
- PLC main module with power supply and extension bus for LPC-2 I/O modules configuration.
- Real Time Linux OS ARM based main module
- 2x Ethernet port (10/100T) with Modbus TCP/IP Slave (server) and/or Master (client) with daisy chain functionality
- USB port for Debugging and application transfer, USB OTG
- BACnet IP (B-ASC), web server and SSL
- Wifi connectivity
- Modbus RTU Master or Slave
- Modbus RTU port Master or Slave
- Smarteh bus for Smarteh intelligent peripheral modules (thermostat, RFID, IR, operator terminal,..)
- RTC and 512 kB non-volatile memory with super capacitor for needed energy storage
- RAM: 1 GB DDR3
- Flash: 4GB
- CPU: iMX6 1GHz
- Standard DIN EN50022-35 rail mounting
USER MANUAL
LPC-2.MC9 | PLC main control module
- PLC main module with power supply and extension bus for LPC-2 I/O modules configuration.
- Real Time Linux OS ARM based main module
- Ethernet connectivity with Modbus TCP/IP Slave (server) and/or Master (client) functionality
- USB port for Debugging and application transfer
- Two CAN ports – one for master, one for slave
- Smarteh bus for Smarteh intelligent peripheral modules (thermostat, RFID, IR, operator terminal,..)
- RTC and 512 kB non-volatile memory with super capacitor for needed energy storage
- BACnet IP (B-ASC), web server and SSL
- Mains power supplied
- Modbus RTU Master or Slave
- Standard DIN EN50022-35 rail mounting
USER MANUAL

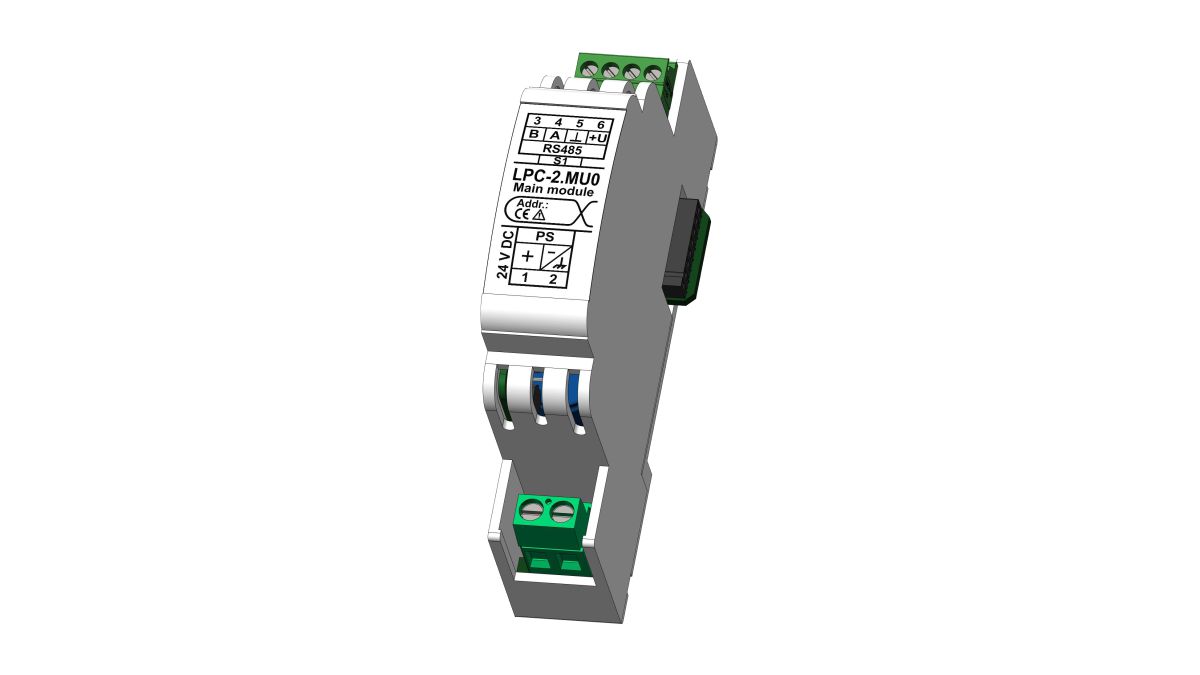

LPC-2.MU0 | Remote I/O Main module, Modbus RTU
- Remote main module with power supply and extension bus for LPC-2 I/O modules configuration.
- RS-485 half duplex serial port for Modbus RTU Slave communication
- Standard DIN EN50022-35 rail mounting
USER MANUAL
LPC-2.MC8 | PLC main control module
- PLC main module with power supply and extension bus for LPC-2 I/O modules configuration.
- 4 kb Flash memory available for parameter storage
- Ethernet connectivity with Modbus TCP slave (server) functionality
- USB port for Debugging, Application and Default parameters transfer
- Two CAN ports – one for master, one for slave
- Smarteh bus for Smarteh intelligent peripheral modules (thermostat, RFID, IR, operator terminal,..)
- Integrated RTC with Super Cap backup
- 32 kB non-volatile memory
- Mains power supplied
- Standard DIN EN50022-35 rail mounting
USER MANUAL
